SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine with Bar Feeder

  • 1
  • 2
  • 3

Z Axis travel : 550mm

X Axis travel : 160mm

Supply Ability : 50 sets per month

MOQ : 1 Set

Payment Terms : L/C,T/T,Western Union

Packaging Details : The wooden case，Tin trunk ,Other seaworthy packing

Spindle Speed : 4500

Brand Name : SMTCL/SYMG

Max.cutting dia. : Φ300

CNC Control System : GSK25Ti

Delivery Time : 45-60 days

Place of Origin : China

Tool turret form : 8-station horizontal servo turret

Price : Negotiable

Brand : SMTCL

Spindle Motor Power(kW) : 11/15

Modle : HTC30Q

Model Number : HTC30Q

Certification : ISO certification

Maximum cutting length : 500

Contact Now

SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine with Bar Feeder

SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine

Product advantages:

  • Optimize product layout with extremely small floor space.
  • Main shaft with large bearings, meeting high rigidity and high torque requirements. It can be equipped with electric spindle for stable processing.
  • Large box-type tool rest with extremely strong cutting rigidity.
  • The entire machine is designed for thermal balance, ensuring high processing accuracy.
  • Use imported guide rails and lead screws, as well as chuck oil cylinders.
  • Can be equipped with an automated processing unit, with very low labor costs.

Product performance:

  1. High Precision:

    Unique feed mechanism
    High-precision C3 grade ball screw
    Overall thermal stability structure of the machine

  2. High Efficiency:

    High spindle speed
    High and fast movement speed of both axes
    Efficient servo turret

  3. High Performance:

    Small floor area
    Quantitative process standards
    Strict inspection standards

Feature 1: Precision manufacturing, stable & reliable

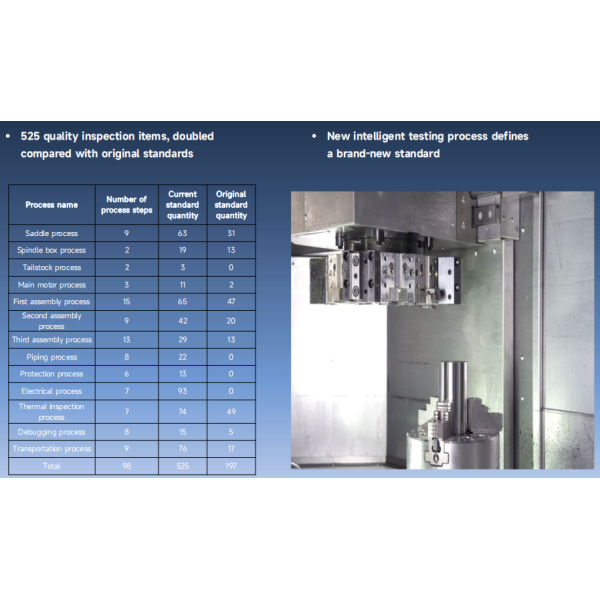

525 quality inspection items, doubled compared with original standards

New intelligent testing process definesa brand-new standard

SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine with Bar Feeder

Evaluated by third-party testing institutions,overall performance has reached the levelof Japanese benchmark equipment

SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine with Bar Feeder

Feature 2: Fully upgraded, superior performance

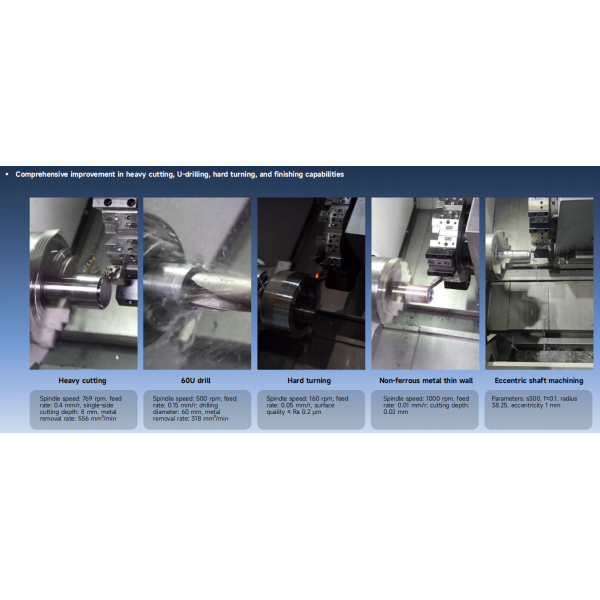

Comprehensive improvement in heavy cutting, U-drilling, hard turning, and finishing capabilities

SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine with Bar Feeder

Feature 3: Platform development, full-domain adaptation

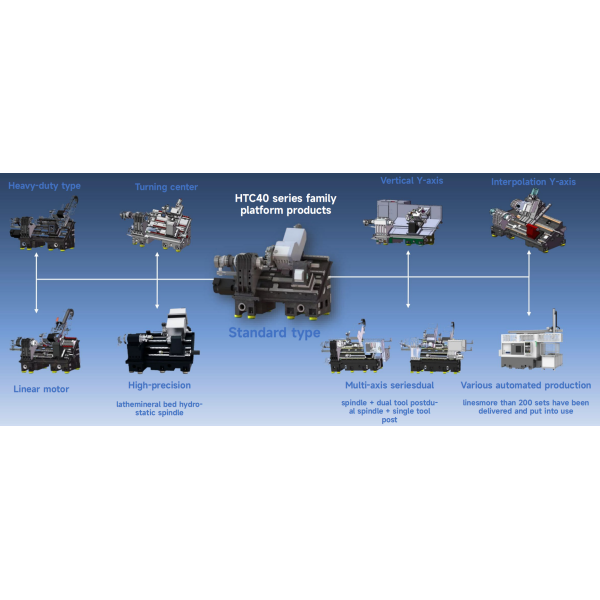

Excellent scalability: Electric spindle, heavy-duty type, turning center, vertical inproduction lines, etc., meeting customers' flexible configuration needs in various erpolation Y-axis, linear motor, high-precision turning, multi-axis series, automated scenarios

SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine with Bar Feeder

Feature 4: Accumulated strength, high precision & efficiency

Efficient programming, unique interface

Efficient solutions, over 5000 accumulated schemes

SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine with Bar Feeder

Comprehensive improvement in component precision,process precision, factory precision, and machiningprecision

SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine with Bar Feeder

Key industries:

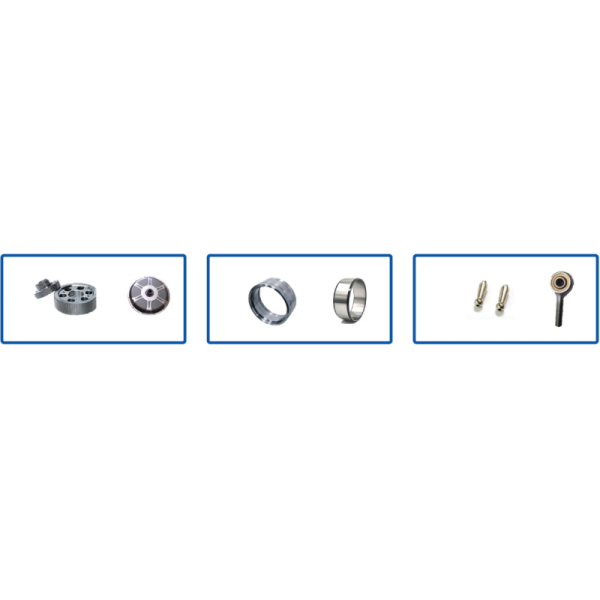

  1. Automotive industry: Gears, end caps
  2. Bearing industry: Outer ring, inner ring
  3. General industry: Ball head, housing

SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine with Bar Feeder

Product Paramenters:

Items Units HTC 30Q
Max.cutting dia. mm Φ300
Maximum cutting length mm 500
Max.swing dia. over bed mm Φ420
Max.swing dia.over bed gap mm Φ280
Spindle

Spindle nose model - A2-6
Front bearing inner dia. mm 100
Spindle taper and hole size
1:20;Φ70
Dia. of spindle hole Max. mm Φ65
Max.bar dia. mm Φ50
Standard chuck dia. inch 8"
Spindle speed range r/min 4500
Spindle max.torque N.m 180(576r/min)
Rated spindle torque N.m 110(769r/min)
Main motor output power continuous/30 min. kW 11/15
X/Z axis

X-axis rapid traverse speed mm 30
Z-axis rapid traverse speed mm 30
X-axis travel mm 160
Z-axis travel mm 560
Tailstock

Tailstock travel mm 300
Tailstock drive method
Saddle drag
Tailstock sleeve travel mm 100
Tailstock sleeve dia. mm Φ100
Tailstock taper hole taper
MT- 5
Tool turret

Tool turret form
8-station horizontal servo turret
Center height mm 80
Repositioning accuracy of tool holder transposition Sec. ±1.6
If could choose tool nearby mm yes
Others

Distance between spindle center and floor mm 936
Machine weight kg 3500
Total power supply capacity KVA 23
Overall dimensions(LxWxH) mm 2295*1680*1650
Standard configuration:

GSK25Ti CNC Control System,Imported Linear Guides & Ball Screws,

High-Quality Sleeve Spindle Unit,Center Height 80mm 8-Station Servo Turret,Hydraulic Tailstock,Imported 8" Hollow Hydraulic Chuck & Cylinder,

Chip Box
Optional configuration: 12-station servo turret,Side chip conveyor,Rear chip conveyor
