Brand Name : HD
Model Number : Z5150B
Certification : CE ISO certification
Place of Origin : CHINA
MOQ : 1
Payment Terms : T/T,L/C,,Western Union
Supply Ability : 50 sets per month
Delivery Time : 45-60 days
Packaging Details : The wooden case,Tin trunk ,Other seaworthy packing
CNC or Not : Manual
Key word : Vertical Drilling Machine
Max. Spindle Speed (r.p.m) : 31.5-1400r.p.m
Maximum hole diameter : 50mm
Maximum feed resistance of spindle : 21000N
Spindle maximum torque : 350N.m

Product Description:
Product Features:

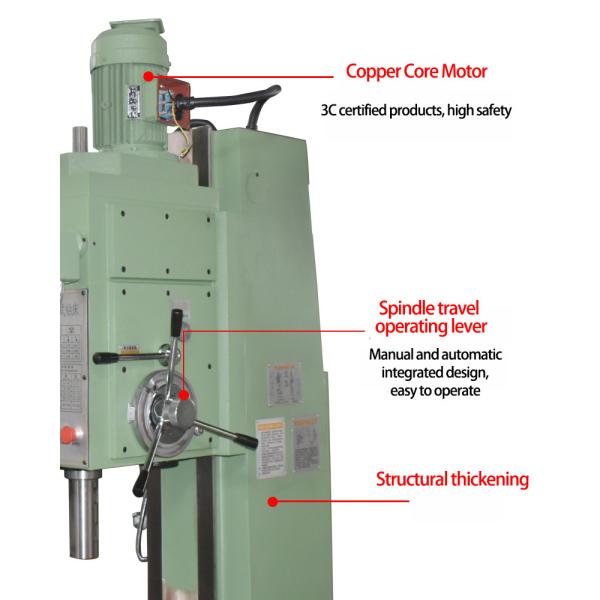

1,Square column vertical drilling machine, machine tool by the main parts of the spindle box, column, base, table and so on. Machine tools require sufficient reinforcement plates to ensure sufficient strength, rigidity and high stability. Advanced and reliable structure.
2,The motor adopts domestic well-known brands, spindle bearings, screw, main electrical components, main hydraulic components are adopted today - the mainstream products with higher quality in the market.
3,The spindle system has good transmission accuracy and rigidity, and the spindle speed change mechanism at all levels is sensitive and reliable.
4,The operating system is centralized, convenient for workers to use, easy maintenance.
5,Spindle tapping can achieve automatic reversal, automatic feed, fixed cutting.






| SPECIFICATIONS | Unit | Z5150B |
| Maximum hole diameter | mm | 50 |
| Maximum feed resistance of spindle | N | 21000 |
| Spindle maximum torque | N.m | 350 |
| Main motor power | Kw | 3 |
| Taper of main taper hole | NO | 5 |
| Spindle speed | r.p.m | 31.5~1400 |
| Feed per revolution of spindle | mm/rev | 0.056~1.80 |
| Main shaft trip | mm | 250 |
| Headstock stroke | mm | 200 |
| Distance from center line of spindle to column | mm | 335 |
| The spindle span | mm | no |
| Lifting stroke of table (manual) | mm | 300 |
| Distance from spindle end face to table | mm | 750 |
| Table size | mm | 400*550 |
| Machine weight | Kg | 1200 |
| Overall dimensions | mm | 1050*710*2010 |
Industry application:

OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected



FAQ:
Q1. Are you a trade company or manufacturing company?
|   |
